for operation of two water features simultaneously
You may need to operate two features simultaneously, for example circulate water through a filter and a cascade at the same time. With other submersible pumps you will need to install complex pipe joints or buy two pumps.
Download PDF catalog

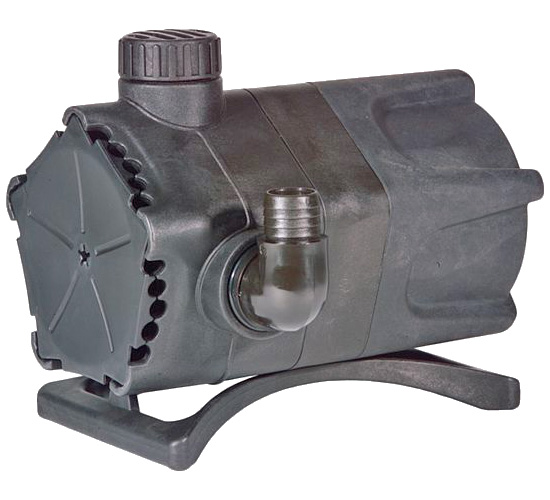

type WGP Submersible Pump
The BIG difference with the highly-reliable WGP pumps is their dual discharge; this feature allows you to operate two features with one pump and no hassle.
Ideal for use in waterfall and stream applications, this powerful direct drive pump features a unique dual discharge design for operation of two water features simultaneously. This pump is extremely versatile, able to be used vertically or horizontally
Applications
• Waterfall & Stream applications
• Circulation in filter systems
• Jumping wells
• supports two features at the same time
• Koi pond circulation
• General drainage
Specifications
• Corrosion resistant body
• Environmentally safe, oil-less
• Cord Length 10m
• two 1-1/4" MNPT
• 1-1/4" MNPT discharge cap
• 1-1/4" barbed elbow adaptors
• Designed to operate continuously
Corrosion resistant body designed for non-potable submersible use
Powerful direct drive pump produces greater starting torque and flow pressure than comparable magnetic drive submersible pumps
Unique dual discharge design allows for operation of two water features simultaneously
Includes two 1-1/4" MNPT x 1-1/4" barbed elbow adaptor and a 1-1/4" MNPT discharge cap
Type | WGP-55 | WGP-65 | WGP-75 | WGP-95 |
max. flow (l/h) | 4000 | 7600 | 10000 | 14800 |
delivery height 1 m (l/h) | 3420 | 7200 | 9400 | 13630 |
delivery height 3 m (l/h) | 2080 | 3785 | 6850 | 10978 |
delivery height 6 m (l/h) | - | 200 | 2150 | 6000 |
height (m) | 5,5 | 6,1 | 7,3 | 8,1 |
watts | 220 | 270 | 370 | 700 |
amps | 1,0 | 1,15 | 1,7 | 3,3 |
weight (kg) | 4,1 | 4,1 | 5,0 | 6,4 |
outlet size (2x) | 1¼" BSP | 1¼" BSP | 1¼" BSP | 1¼" BSP |
dimensions (H x L x W) | 206x243x161,3 | 206x243x161,3 | 206x243x161,3 | 203x279x161,3 |
Protection | IP68 | IP68 | IP68 | IP68 |
Subject to change!
