Construction
Self-priming external gear pumps with mounting flange,
compact pump housing in cast iron. Standard suction
and pressure port: pipe thread (opposite 180°),
for type F5.. SAE-flange optionally.
mounting position variable
Applications
The self-priming gear pumps are used in industrial
applications as an oilpump, lubrication-pump and
capacity-pump for oily and lubricating liquids.
- oilpumps in bearing systems
- mechanical engineering
- dosing pumps
- lubrication pumps in testing applications
- detergent dosing pump
Examples of liquids suitable for transport
Hydraulic oil, gear oil, engine oil, mineral oils, synthetic oils,
emulsions and pastes without abrasives.
For lubricating liquids.
Operating conditions
Liquid temperature: -20°C to +60°C (NBR)
Ambient temperature from -20°C up to +40°C
operating pressure: max. 100 bar
others on request
Drives
For example: hydraulic motor, electric motor
drives without axial / radial forces on the drive shaft

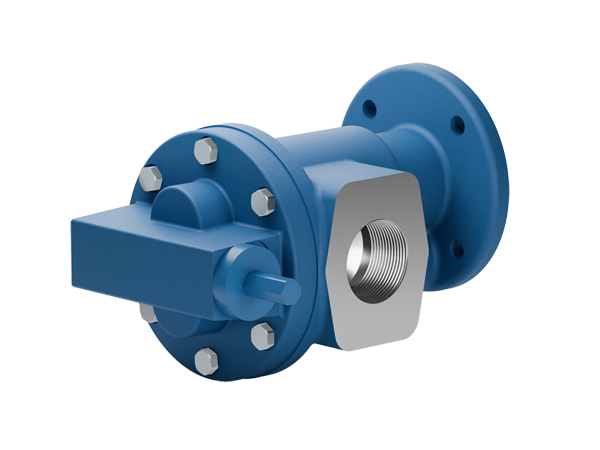

The pumps series F optionally available as series FU with circulation valve in the pump head
| Components | Material | on Request |
| casing and cover | Cast Iron - EN-GJL-250 - (GG25) | ductile cast iron (GGG40) |
| shaft | Steel | |
| gears | Steel, hardened and grinded | |
| bearing bushes | composite bearings | |
| shaft seal | Sealing ring NBR | FPM, PTFE, GLRD, packing gland |
| type | cm³/U | Pressure | ||||||||||||
| bar | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| Capacity / required drive power (kW*) | ||||||||||||||
| F 1-017 | 0,12 | l/min | 0,17 | 0,14 | 0,10 | 0,09 | ||||||||
| kW* | 0,002 | 0,004 | 0,006 | 0,008 | ||||||||||
| F 1-06 | 0,43 | l/min | 0,60 | 0,55 | 0,50 | 0,40 | ||||||||
| kW* | 0,007 | 0,014 | 0,021 | 0,029 | ||||||||||
| F 15 | 0,85 | l/min | 1,15 | 1,10 | 1,05 | 1,00 | 0,90 | 0,80 | 0,60 | |||||
| kW* | 0,014 | 0,027 | 0,041 | 0,055 | 0,080 | 0,11 | 0,14 | |||||||
| F 17 | 1,2 | l/min | 1,60 | 1,55 | 1,50 | 1,40 | 1,30 | 1,10 | 0,90 | |||||
| kW* | 0,019 | 0,038 | 0,057 | 0,076 | 0,11 | 0,15 | 0,19 | |||||||
| F 110 | 1,8 | l/min | 2,30 | 2,25 | 2,20 | 2,10 | 2,00 | 1,80 | 1,60 | |||||
| kW* | 0,027 | 0,055 | 0,082 | 0,11 | 0,16 | 0,22 | 0,27 | |||||||
| Valid for hydraulic oil with 35 mm²/s at 50 °C | Oil-Speed: max. 1,5 m/s suction side, max. 4,5 m/s pressure side |
| Tolerance of capacity: +/- 3% | * kW = required drive power in kW (without dissipation) |
Weight: 1,5 kg
Weight: 1,5 kg
| Typ | cm³/U | Pressure | ||||||||||||
| bar | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| Capacity / required drive power (kW*) | ||||||||||||||
| F 210 | 2,3 | l/min | 3,00 | 2,95 | 2,90 | 2,80 | 2,70 | 2,60 | 2,40 | 2,20 | 2,00 | |||
| kW* | 0,036 | 0,072 | 0,11 | 0,14 | 0,21 | 0,29 | 0,36 | 0,43 | 0,50 | |||||
| F 214 | 3,2 | l/min | 4,50 | 4,45 | 4,40 | 4,30 | 4,20 | 4,10 | 3,90 | 3,70 | 3,50 | |||
| kW* | 0,054 | 0,11 | 0,16 | 0,21 | 0,32 | 0,43 | 0,54 | 0,64 | 0,75 | |||||
| F 219 | 4,3 | l/min | 6,00 | 5,95 | 5,90 | 5,85 | 5,80 | 5,70 | 5,50 | 5,30 | 5,10 | |||
| kW* | 0,072 | 0,15 | 0,22 | 0,29 | 0,44 | 0,58 | 0,73 | 0,87 | 1,02 | |||||
| Valid for hydraulic oil with 35 mm²/s at 50 °C | Oil-Speed: max. 1,5 m/s suction side, max. 4,5 m/s pressure side |
| Tolerance of capacity: +/- 3% | * kW = required drive power in kW (without dissipation) |
Weight: 2,5 kg
Weight: 2,5 kg
| Typ | cm³/U | Pressure | ||||||||||||
| bar | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | ||
| Capacity / required drive power (kW*) | ||||||||||||||
| F 310 | 5,1 | l/min | 7,40 | 7,35 | 7,30 | 7,25 | 7,20 | 7,10 | 7,00 | 6,90 | 6,80 | 6,70 | 6,60 | 6,50 |
| kW* | 0,09 | 0,18 | 0,26 | 0,35 | 0,53 | 0,71 | 0,88 | 1,06 | 1,24 | 1,41 | 1,59 | 1,77 | ||
| F 314 | 7,1 | l/min | 10,20 | 10,15 | 10,10 | 10,00 | 9,90 | 9,70 | 9,40 | 9,10 | 8,80 | 8,50 | 8,00 | 7,40 |
| kW* | 0,12 | 0,24 | 0,37 | 0,49 | 0,73 | 0,97 | 1,22 | 1,46 | 1,70 | 1,95 | 2,19 | 2,43 | ||
| F 318 | 9,1 | l/min | 13,20 | 13,10 | 13,00 | 12,80 | 12,60 | 12,40 | 12,10 | 11,80 | 11,50 | 11,20 | 10,80 | 10,40 |
| kW* | 0,16 | 0,31 | 0,47 | 0,63 | 0,94 | 1,26 | 1,57 | 1,89 | 2,20 | 2,52 | 2,83 | 3,15 | ||
| F 323 | 11,7 | l/min | 16,70 | 16,60 | 16,50 | 16,40 | 16,20 | 16,00 | 15,60 | 15,20 | 14,80 | 14,40 | 14,00 | 13,60 |
| kW* | 0,20 | 0,40 | 0,60 | 0,80 | 1,20 | 1,59 | 1,99 | 2,39 | 2,79 | 3,19 | 3,59 | 3,98 | ||
| F 328 | 14,1 | l/min | 20,30 | 20,20 | 20,10 | 20,00 | 19,80 | 19,60 | 19,40 | 19,00 | 18,60 | 18,20 | 17,70 | 17,20 |
| kW* | 0,24 | 0,48 | 0,72 | 0,96 | 1,45 | 1,93 | 2,41 | 2,89 | 3,37 | 3,86 | 4,34 | 4,82 | ||
| F 333 | 16,7 | l/min | 24,10 | 24,00 | 23,90 | 23,80 | 23,60 | 23,40 | 23,20 | 22,90 | 22,50 | 22,10 | 21,60 | 21,10 |
| kW* | 0,28 | 0,57 | 0,85 | 1,14 | 1,70 | 2,27 | 2,84 | 3,41 | 3,97 | 4,54 | 5,11 | 5,68 | ||
| Valid for hydraulic oil with 35 mm²/s at 50 °C | Oil-Speed: max. 1,5 m/s suction side, max. 4,5 m/s pressure side |
| Tolerance of capacity: +/- 3% | * kW = required drive power in kW (without dissipation) |
Weight: 4,3
Weight: 4,3 kg
Weight: 4,5 kg
Weight: 4,5 kg
| Typ | cm³/U | Pressure | |||||||
| bar | 5 | 10 | 15 | 20 | 30 | 40 | 50 | ||
| Capacity / required drive power (kW*) | |||||||||
| F 422 | 21,2 | l/min | 30,50 | 30,30 | 30,10 | 29,80 | 29,40 | 29,00 | 28,50 |
| kW* | 0,35 | 0,69 | 1,04 | 1,38 | 2,08 | 2,77 | 3,46 | ||
| F 426 | 25 | l/min | 36,20 | 36,00 | 35,80 | 35,50 | 35,10 | 34,70 | 34,20 |
| kW* | 0,42 | 0,83 | 1,25 | 1,66 | 2,49 | 3,32 | 4,15 | ||
| F 430 | 28,9 | l/min | 41,60 | 41,40 | 41,20 | 40,90 | 40,50 | 40,10 | 39,60 |
| kW* | 0,48 | 0,97 | 1,45 | 1,94 | 2,91 | 3,87 | 4,84 | ||
| F 434 | 32,8 | l/min | 47,30 | 47,10 | 46,90 | 46,60 | 46,20 | 45,80 | 45,30 |
| kW* | 0,55 | 1,11 | 1,66 | 2,21 | 3,32 | 4,43 | 5,53 | ||
| F 438 | 36,7 | l/min | 53,00 | 52,80 | 52,60 | 52,30 | 51,90 | 51,50 | 51,00 |
| kW* | 0,62 | 1,25 | 1,87 | 2,49 | 3,74 | 4,98 | 6,23 | ||
| Valid for hydraulic oil with 35 mm²/s at 50 °C | Oil-Speed: max. 1,5 m/s suction side, max. 4,5 m/s pressure side |
| Tolerance of capacity: +/- 3% | * kW = required drive power in kW (without dissipation) |
Weight: 9,5 kg
| Typ | cm³/U | Pressure | |||||||
| bar | 5 | 10 | 15 | 20 | 30 | 40 | 50 | ||
| Capacity / required drive power (kW*) | |||||||||
| F 545 | 43,4 | l/min | 62,70 | 62,50 | 62,30 | 61,80 | 61,30 | 60,80 | 60,30 |
| kW* | 0,74 | 1,49 | 2,23 | 2,97 | 4,46 | 5,95 | 7,43 | ||
| F 556 | 54 | l/min | 78,10 | 77,90 | 77,70 | 77,20 | 76,70 | 76,20 | 75,70 |
| kW* | 0,90 | 1,80 | 2,70 | 3,60 | 5,40 | 7,20 | 9,00 | ||
| F 570 | 67,5 | l/min | 97,70 | 97,50 | 97,20 | 96,70 | 96,20 | 95,70 | 95,20 |
| kW* | 1,14 | 2,28 | 3,42 | 4,57 | 6,85 | 9,13 | 11,40 | ||
| F 590 | 86,8 | l/min | 124,00 | 123,80 | 123,60 | 123,10 | 122,60 | 122,10 | 121,60 |
| kW* | 1,49 | 2,97 | 4,46 | 5,95 | 8,92 | 11,90 | 14,90 | ||
| Valid for hydraulic oil with 35 mm²/s at 50 °C | Oil-Speed: max. 1,5 m/s suction side, max. 4,5 m/s pressure side |
| Tolerance of capacity: +/- 3% | * kW = required drive power in kW (without dissipation) |
Weight: 11 kg
Weight: 11 kg
Weight: 13 kg
Weight: 13 kg
